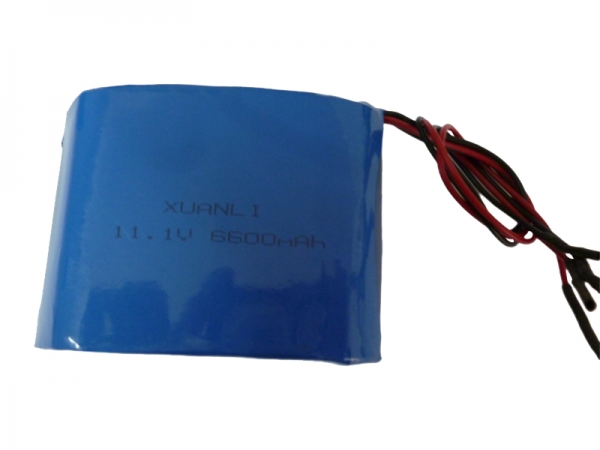

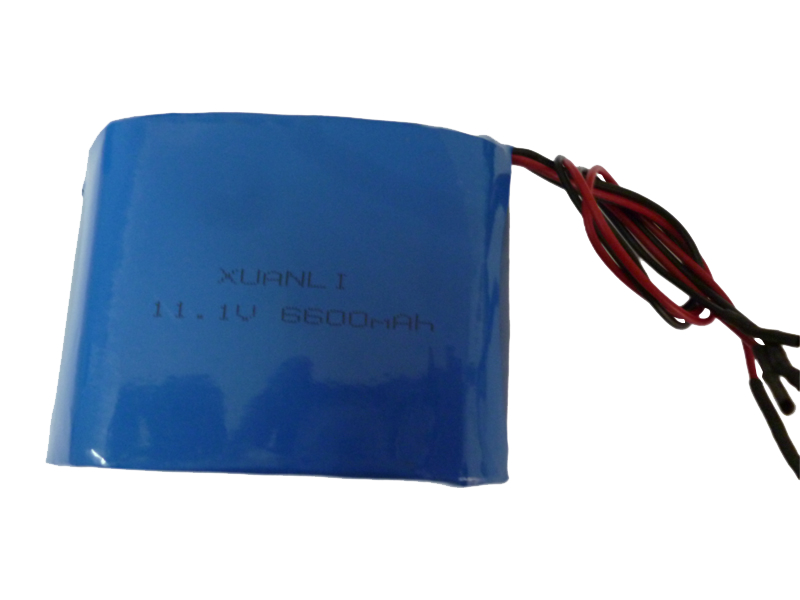

11.1V cylindrical lithium battery product model: XL 11.1V 6600mAh
11.1V cylinder lithium battery technical parameters (specific design according to customer requirements - voltage / capacity / size / line)
Single battery model: 18650
·Voltage of single cell: 3.7V
·Nominal voltage after battery pack combination: 11.1V
·Capacity of single battery: 2.2Ah
·Battery combination mode: 3 strings and 3 parallels
·Voltage range of battery after combination: 7.5~12.6V
·Battery capacity after combination: 6.6Ah
·Battery pack power: 73.26Wh
·Battery pack size: 35 * 70 * 92.5mm
·Maximum discharge current: < 6.6A
·Instantaneous discharge current: 13.2~19.8A
·Maximum charging current: 0.2~0.5C
·Charging and discharging times: ＞ 500 times
·Main chips: (Seiko, Ti)
11.1V cylindrical lithium battery
· Conform to relevant national or international battery standards
· All battery products are tested before leaving the factory
